Go beyond the limitations of traditional HDMI cabling with a hybrid fibre solution.
PLEASE NOTE: This cable is directional. It only sends video one way. Please follow the 'source' and 'display' markings on the plugs carefully to ensure the cable is installed correctly.
Avencore Carbon Series HDMI Active Optical Cables offer true 48Gbps at lengths beyond the ability of traditional copper cables. Aside from being a directional cable (with dedicated source and display ends), these cables operate just like a conventional HDMI cable, with no extra power or connections required - just a HDMI Male plug on each end! In most scenarios, your hardware will never know the difference.
Supports HDMI v2.1 abilities including 48Gbps, VFR, HFR, Dynamic HDR, eARC, CEC, HDR10+ and more. This amazing 20m cable requires no boosters or extra power to operate and is practically immune to environmental interference, making it a great option if your signal quality is being degraded by EMI or RFI.

With the dominance of HDR and 4K/8K gaming content in the home, manufacturers of hardware technology have quickly exceeded the capabilities of copper cables, limiting users just 5 metres or less in order to retain the bandwidth necessary for the biggest picture and best features.
That's not the case with the Avencore Carbon Series HDMI Active Optical Cable range. Using a fibre optic core, these exceptional cables are able to retain maximum bandwidth over all available lengths. Unlike other optical HDMI cables, the Carbon Series needs no external power of any kind, and can work with most consumer and commercial HDMI systems without any special setup requirements.
With full HDMI 2.1 hardware compatibility, you'll retain features like HDR, 32 Channel Audio, Rec. 2020, DSC and more - no matter how long your cable is. 8K UHD at 60Hz has never looked so good, and has never gone such a great distance! It's the perfect complement to PlayStation 5 and XBox Series X for 4K 60Hz gaming with HDR, and excels at high-end gaming PC compatibility, too. Now you can run a 5K Ultra-wide monitor up to 70m away from the rig!

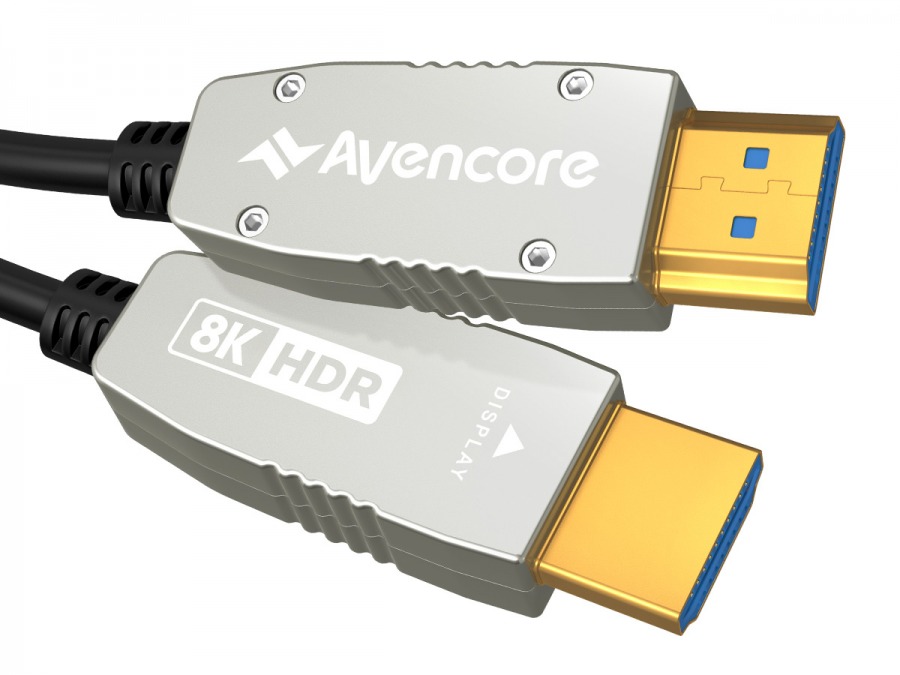

Carbon Series HDMI Active Optical Cables are also easy to work with, sporting a 5.5mm cable diameter with metal alloy plugs measuring 17x9x36mm, plus the obligatory gold plated terminals. Flexibility is also high, with a 25mm safe bend radius, making them suitable for all installations including for use with VR systems or in-wall builds.
Some hardware may be fussy about optical cables. We've seen Nvidia Quadro GPUs and a few projectors spit the dummy on optical solutions, so we stand by our satisfaction guarantee when it comes to compatibility. Always give any optical cable a good bench test before permanent installation - if you find an unexpected issue that our troubleshooting can't fix, we'll look after you.
The Avencore Carbon Series HDMI Active Optical cable range is the ultimate in HDMI cable technology for the 8K era, and is targeted for use with 4K60 systems running HDR content, and easily handles 8K gaming content as well. Regular 4K Blu-ray and 1080p video content is also easy over longer distances, going much further than regular copper cables can achieve.
Carbon Series 20m HDMI over Fibre Optical Cable Specifications
- Avencore 5 Year Replacement Warranty
- Latest HDMI 2.1 48Gbps Compatibility!
- Works with DisplayPort to HDMI adapters (sold separately)
- Fibre Optical Cores - no EMF or RFI
- Supports Ultra High-Speed 48 Gbps Bandwidth
- Supports ARC/eARC, CEC, Dynamic HDR
- Supports VRR, ALLM, QTF/QMS
- Supports HDCP2.2 (High-Bandwidth Digital Content Protection)
- Suits high-bandwidth resolutions including 8K@60Hz, 4K@120Hz, 1080p 3D, 1080p @240Hz
- No external power needed! Plug and Play!
- 5.5mm cable diameter, 17x9x36mm alloy plugs, 25mm safe bend radius
- Directional cable - Plugs are marked Source / Display
- Colour: Black cable with silver connectors
Best used for
- Home, office & light commercial installations
- 2D content up to 8K@60Hz / 10K@30Hz
- Console Gaming up to 4K @ 60Hz with HDR on PlayStation 5, Xbox Series X
- 8K@60, 4K@120, 1440@165+ and 1080p@240 Gaming on PC/Mac/Linux
- Great with ultra-wide and curved displays
- Foxtel, Apple TV Compatible
- Youtube, Netflix & Blu-ray Ultra HD content
- High-interference environments; EMI/RFI immune
Why shop with Cable Chick
- Australia's leading retailer of AV cables and tech accessories
- Flat-rate shipping nation wide
- Secure online shopping 24/7
- 14 years experience with 1000's of health, government & education clients
- ALL products locally stocked for same-day dispatch
- Industry leading warranties up to 5-years on products
- A customer base of over 250k+ Australians who trust Cable Chick
- Proudly to be 100% Australian, employing all local staff
Posted: 9th Sept, 2014
Question:
Are 14.3gbps hdmi cables better than 10.2gbps cables?
Answer:
"Higher bandwidth capacity translates to greater compatibility with the latest HDMI 2.0 hardware features like 4K@60Hz. We are currently in the process of testing and revising our HDMI cable specs to see where they fall within the new HDMI testing standards. For our top-end cables like Amped Fusion & Onyx, they should be able to move 18.0 Gbit/s on HDMI 2.0 hardware on lengths up to 5 metres without any trouble."
Posted: 13th August, 2019
Question:
Hi, I need to clarify the 4K60Hz rating on the Avencore Carbon Series 20m HDMI Active Optical Cable. Is the 4K60 specification at 4:4:4 or 4:2:0 colour space.
Thanks?
Answer:
"The 4k/60 specification is at 4:4:4 colour space."
Posted: 9th Dec, 2019
Question:
Do these active and directional cables support ARC?
Answer:
"As directional cables only send signal one direction they are not ARC compatible."
Posted: 11th August, 2026
Question:
Can this cable work good in any projector?
Answer:
"As long as the cable is connected in the correct direction as per the markings on each connector there shouldn't be any issues."
