More Monitors = More Fun!
This MST Hub (Multi-Stream Transport Hub) allows a single DisplayPort port on your computer to output to up to 3 monitors in Mirrored oe Extended Desktop mode! Just look for the DP++ support on the device socket to ensure support for DisplayPort MST. The MST Hub itself runs at the powerful DP v1.4 standard, means resolutions up to 8K @ 30Hz are supported! See the detailed overview below for what resolutions are supported when running One, Two or Three simultaneous screens on compatible hardware...
This compact 3-port DisplayPort Splitter hub is intended for the beefiest of PCs and Gaming laptops. If your computer has a DP 1.4 socket and your monitor(s) can handle it, you can enjoy one display at 8K@30Hz or 4K@144Hz, two displays at 4K@60Hz, or three 4K@30Hz displays simultaneously. That's crazy stuff! Lower combined resolutions, such as 1440p or 1080p will increase the available bandwidth and improve refresh rates. Eg: 2x 1080p@240Hz.
Enjoy your choice of a mirrored/cloned desktop, or an extended desktop by utilising the magic of Multi-Stream Transport (MST) on DisplayPort v1.4 hardware. This HBR3 (High Bit-rate 3) compatible MST Hub supports both video and audio for a truly immersive computer experience for resolution combinations under 32Gbps total bandwidth.
The MST Hub itself comes with a USB Cable for power (you can use any USB port on your computer, monitor or a dedicated USB Charger to power it), however you'll need to get some DisplayPort (Male to Male) cables of your desired length to complete the set up.
- Connect the DisplayPort MST Hub to a DP++ compatible socket on your computer wiith a DisplayPort Cable
- Connect the DisplayPort MST Hub to a powered USB port (a computer, TV or a wall socket USB charger will do)
- Connect from each output on the MST Hub to your 1-3 displays, using either DP to HDMI, DP to Mini-DP, or a DP (Male to Male) Cable
- Now your connection is setup, simply configure the displays via your computer's display properties
- 5 year Cable Chick Warranty

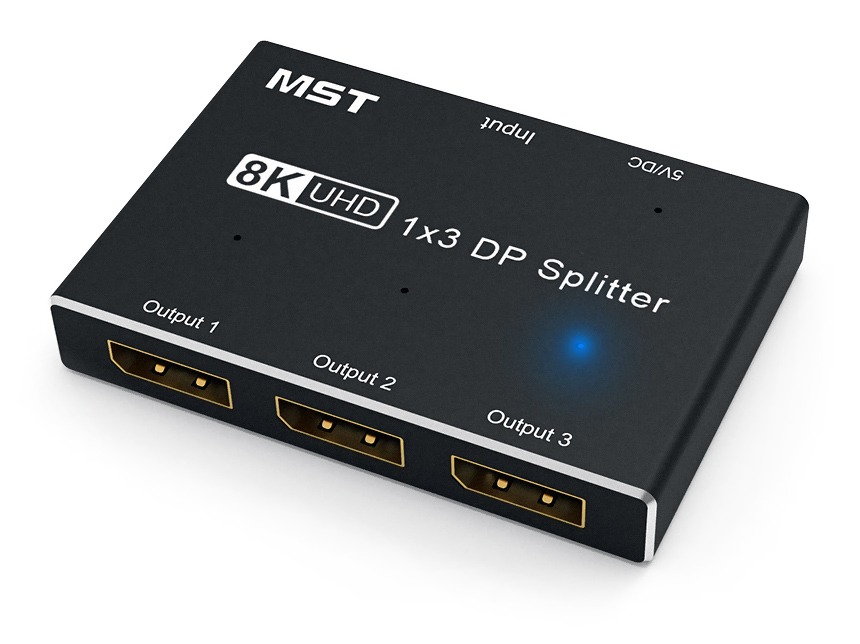

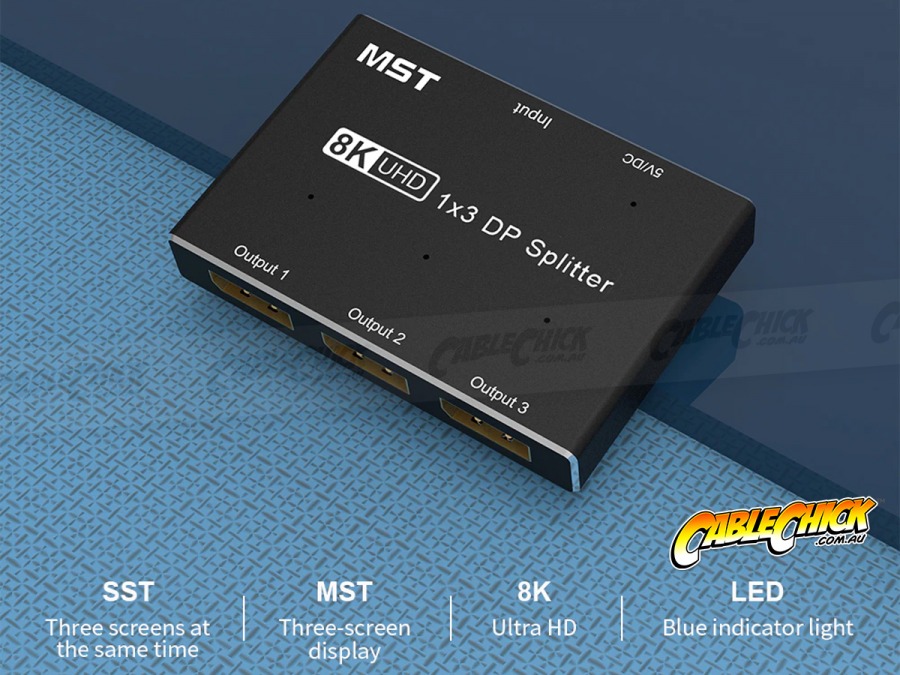

- 3-Port DisplayPort 1.4 MST Hub (3-Way DisplayPort Splitter)
- Supports Mirroring and Extended Desktop Modes
- Supports a total resolution of 8K@30Hz (Requires compatible DisplayPort 1.4 compatible hardware)
- Can be used with a Mini-DisplayPort to DisplayPort Adapter for compatibility on Mini-DP Sockets
- USB Powered (cable included)
- 32Gbps Data tranfer rate (HBR3)
- Full Support for HDCP v1.3 and DPCP (Display Port Content Protection)
- Full Support for HDCP v1.3 and DPCP (Display Port Content Protection)
- Audio formats up to 24bit / 192KHz supported

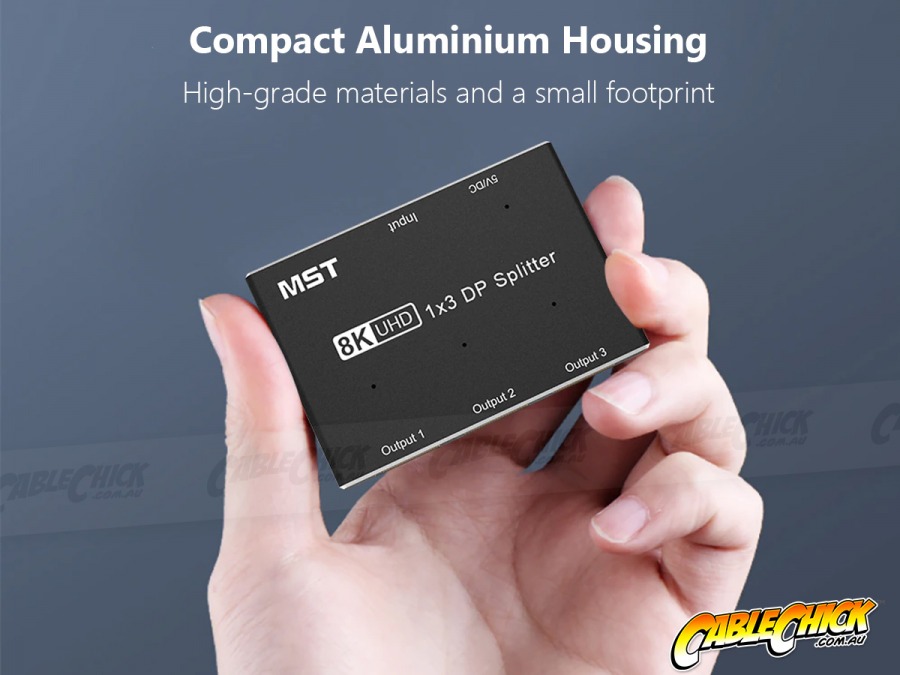

- Colour: Black Aluminium casing
*Hardware Note: Your existing video graphics adapter must meet the DisplayPort hardware specifications you intend to use for this splitter to perform all its functions. Older graphics cards or mobile graphics chipsets not capable of MST will not be compatible with this splitter.
Why shop with Cable Chick
- Australia's leading retailer of AV cables and tech accessories
- Flat-rate shipping nation wide
- Secure online shopping 24/7
- 14 years experience with 1000's of health, government & education clients
- ALL products locally stocked for same-day dispatch
- Industry leading warranties up to 5-years on products
- A customer base of over 250k+ Australians who trust Cable Chick
- Proudly to be 100% Australian, employing all local staff
Posted: 27th Jan, 2015
Is this compatible with HP EliteBook 8440p?
"HP don't mention any specific level of support for DisplayPort on the EliteBook, so it's hard to know what version of hardware they've implemented, and therefore, what its specifications are. They do state that the maximum resolution from DP is 2560x1600, which, along with the release date of the 8440p in 2010, suggests that is does not have the bandwidth capability to run dual screens with an MST adapter. Unfortunately we can't give a firm answer without being able to test it."
Posted: 3rd Feb, 2015
Does this device contain active streaming untis for passive pass thou, or are active DisplayPort to DVI adapter is required for legacy displays?
"Only DisplayPort v1.2 hardware with MST is supported by the device. DVI, HDMI and VGA adapters are also supported by the splitter when connected to DispalyPort v1.2 hardware."
Posted: 11th May, 2015
Could I use this to support a 3 monitor set up? i.e. One monitor from one DVI/VGA port and two monitors from a second port with this splitter?
"Yes. We have tested this successfully using the DisplayPort Splitter cable to run 2 x 1440p displays, then DVI to a third screen. VGA and/or HDMI are also able to be used instead. We found our hardware was limited to 3 displays maximum at a time. Other motherboards and video cards may have different limitations.
The DisplayPort source must be v1.2 compatible."
Posted: 12th May, 2015
Can I connect 2 PC computers to 1 single monitor using this Display Port splitter ? All 3 units are using the Display Port plug?
"No. This splitter only works to connect one PC to 2 monitors."
Posted: 27th May, 2015
I have a displayport v1.1 on my work PC. I want to connect 2 monitors that are exactly the same.
I've read that v1.1 will still handle multi monitors if they are all the same resolution/refresh rate.
Can you confirm if this adapter will work on v1.1 at all?
"DisplayPort v1.1 hardware does not support MST, which this adapter requires to function. MST (Multi-Stream Transport) was introduced with DisplayPort v1.2."
Posted: 4th June, 2015
Does this work with MacBook Pro?
"Yes, but I would recommend our new Mini-DisplayPort Splitter adapter instead. It is Thunderbolt compatible for DisplayPort video/audio and can plug directly into your laptop: http://www.cablechick.com.au/cables/15cm-mini-displayport-splitter-cable-mst-hub-extend-mirror.html"
Posted: 3rd Sept, 2015
Hi can i connect this in reverse. so from 1 computer with 2 graphics cards but each of the graphics cards will be used 1 at a time and not even during the same windows session as we will have dual boot computer and each boot scenario will only use 1 graphics card. Thanks?
"Unfortunately we can't test this function, but our knowledge of DisplayPort hardware would suggest this is NOT possible, as MST operations are one-way."
Posted: 17th Sept, 2015
I've got a laptop plugged to a dock - diplay port connection and want to extend the laptop to 2 other screens (3 in total including laptop itself) is this possible?
"Generally, yes. However, we have seen some docks, like those for the Microsoft Surface Pro, not offer full DisplayPort features via the dock connection. Please check your user manuals and documentation to check that: 1) Your dock supports the required number of displays, and B) your laptop can handle the combined resolution of all three displays.
Generally for laptops the maximum screen resolution for triple-screen displays is 1080p each, but this can vary between make and model."
Posted: 23rd Sept, 2015
Does this splitter run the two monitors at 144Hz?
"Most likely not. We don't have two 144Hz monitors to test with, but our findings with 4K @ 60Hz suggests that the bandwidth limit of HBR2 DisplayPort would not be able to handle more than one monitor at 144Hz. For example, 1440p@144Hz requires much more bandwidth than 4K@60Hz, which means most 144Hz monitors will need a dedicated DisplayPort socket to operate at their full potential."
Posted: 3rd May, 2016
Does this work with MacBook Air with thunderbolt2 ?
my MBA version is late 2014. i am sure my MBA 's port is thunderbolt2?
"No. This splitter has the full size Displayport plug rather than the Thunderbolt-compatible Mini-DisplayPort plug. MST functions are also not fully supported on Mac systems, so only mirror mode is available at this time."
Posted: 18th July, 2016
Will it support a macbook (late 2009) with 2 x AOC 22" displays?
"It will likely only offer mirror mode (clone/duplicate) as most Mac systems of this era do not support extended desktop MST modes."
Posted: 19th Oct, 2016
I have a Dell XPS13 laptop. I would like to connect 2x 24" monitors with this displayport. I want to confirm that the displayport will do that by connecting to one of the USB ports on the laptop. Is there anything else I need to get? Any other cables?
"The current model XPS13 does not have a standard DisplayPort socket for use with this MST hub. It uses the new USB Type-C connector with Thunderbolt 3 compatibility which can usually be adapted to work with DisplayPort devices. We haven't been able to test with a Dell ourselves, but the MST hub above may be combined with a Type-C adapter (Product code USB3153) and maintain functionality - the MST hub will still need power from another USB to operate, of course."
