DP9911
5+ In-Stock & Next Business Day!

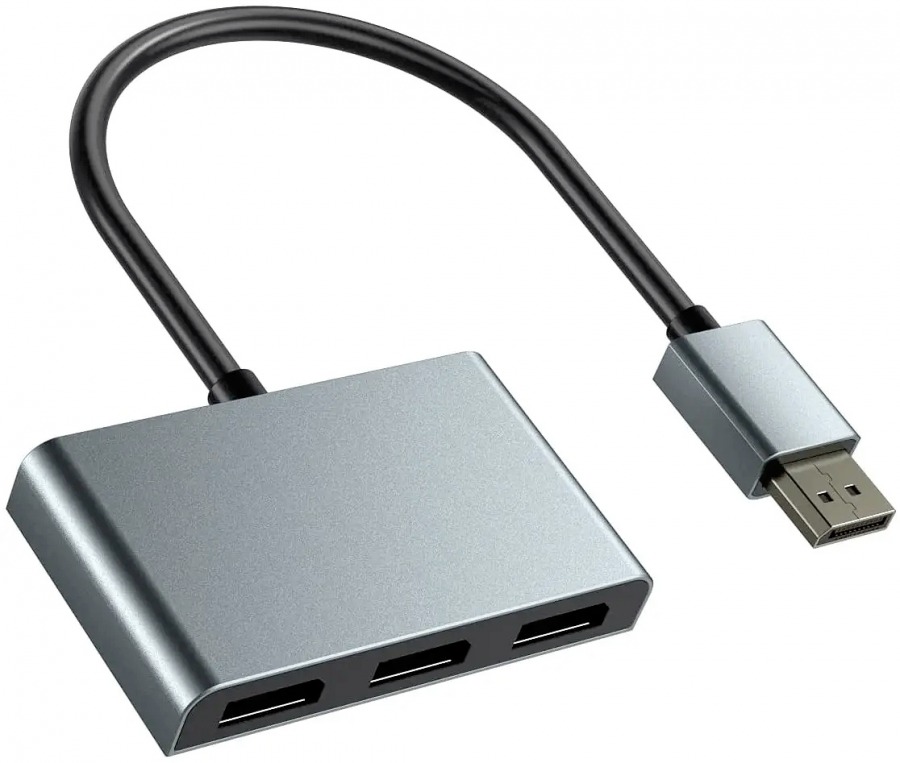

3-Way DisplayPort 1.4 MST Hub - 8K Splitter Hub (Extend & Mirror)

Run up to three 4K/60Hz displays in mirrored or extended mode from a single DisplayPort v1.4 socket on compatible hardware!

3-Way DisplayPort 1.4 MST Hub - 8K Splitter Hub (Extend & Mirror) (Photo )
3-Way DisplayPort 1.4 MST Hub - 8K Splitter Hub (Extend & Mirror) (Photo )
3-Way DisplayPort 1.4 MST Hub - 8K Splitter Hub (Extend & Mirror) (Photo )
3-Way DisplayPort 1.4 MST Hub - 8K Splitter Hub (Extend & Mirror) (Photo )
3-Way DisplayPort 1.4 MST Hub - 8K Splitter Hub (Extend & Mirror) (Thumbnail )
3-Way DisplayPort 1.4 MST Hub - 8K Splitter Hub (Extend & Mirror) (Thumbnail )
3-Way DisplayPort 1.4 MST Hub - 8K Splitter Hub (Extend & Mirror) (Thumbnail )
3-Way DisplayPort 1.4 MST Hub - 8K Splitter Hub (Extend & Mirror) (Thumbnail )

This 3-Way DisplayPort MST Hub (Multi-Stream Transport Hub) allows up to three DisplayPort monitors to be connected in either mirror or extend modes from a single DisplayPort v1.4 DP++ or better source device which is rated to handle the total intended bandwidth. Basically you have a full 8K @ 60Hz worth of bandwidth here (DisplayPort v1.4 HBR3 spec), which can be distributed to the 3 x DisplayPort outputs, for incredible multi-screen setups! This means it's possible to have two screens at 4K/60Hz or even three screens at 4K/60Hz with compatible hardware. (NOTE: Some ATI Graphics cards will only support 3-Screens at 4K/30Hz. MacOS does not support DisplayPort's MST Multi-Stream function, and will only Mirror the displays)

In-Stock, Ships Next Business Day!
POPULAR! 120+ SOLD
RRP: $199.95   Was $149.95
119.95
Bulk Pricing (Inc-GST)
QTY BUY         PRICE   /   ITEM DISCOUNT
2+ Units:
$111.55 -$8.40 ea
10+ Units:
$103.35 -$16.60 ea
20+ Units:
$92.80 -$27.15 ea
Bulk discounts will be calculated automatically.
Ships EXPRESS for $9.95 Aust-Wide!
Over 350,000 happy customers and counting...
Read our Google Reviews
Read our Reviews on ProductReview.com.au
Pay by Secure Credit Card, PayPal or EFT
Accepted Payment Methods
  • Description
  • Product Specs
  • Product Reviews
  • Related Blogs
  • FAQs
Push your computer to its limits!

This 3-Way DisplayPort MST Hub (Multi-Stream Transport Hub) allows up to three DisplayPort monitors to be connected in either mirror or extend modes from a single DisplayPort v1.4 DP++ or better source device which is rated to handle the total intended bandwidth. Basically you have a full 8K @ 60Hz worth of bandwidth here (DisplayPort v1.4 HBR3 spec), which can be distributed to the 3 x DisplayPort outputs, for incredible multi-screen setups! This means it's possible to have two screens at 4K/60Hz or even three screens at 4K/60Hz with compatible hardware. (NOTE: Some ATI Graphics cards will only support 3-Screens at 4K/30Hz. MacOS does not support DisplayPort's MST Multi-Stream function, and will only Mirror the displays)

Support Resolutions and Refresh Rates

  • When  running 1 Display:
    • 8K@60Hz
    • 4K@144Hz
  • When  running 2 Displays:
    • 2x 4K@60Hz
    • 2x Full HD 1080p@240Hz
  • When  running 3 Displays:
    • 3x 4K@60Hz (Note some graphics cards only support 3x 4K/30Hz)
    • 3x Full HD 1080p@144Hz

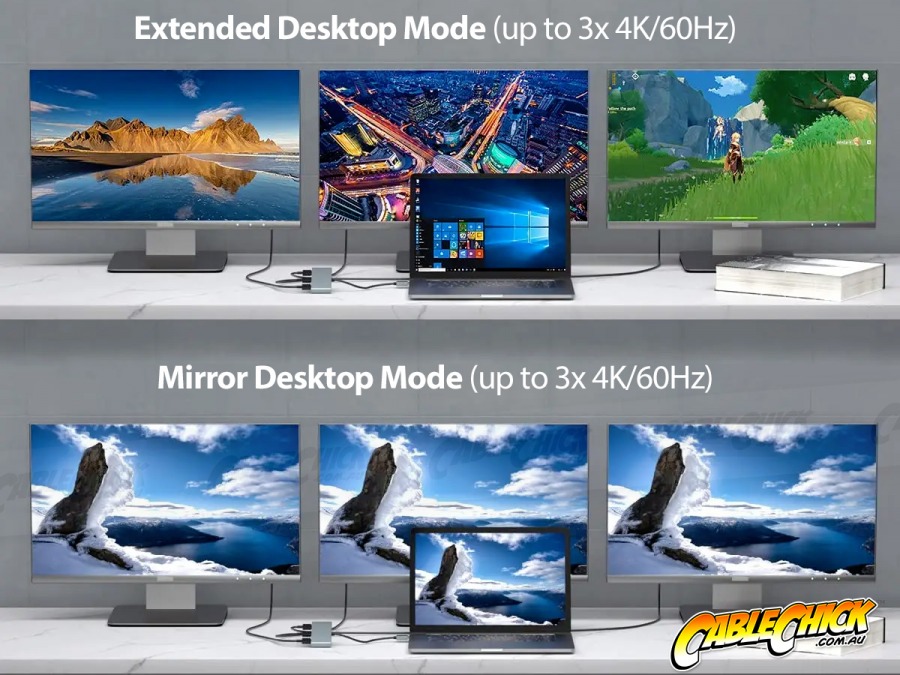

Enjoy your choice of a mirrored/cloned desktop, or an extended desktop by utilising the magic of Multi-Stream Transport (MST) on DisplayPort v1.4 hardware. This HBR3 (High Bit-rate 3) compatible MST Hub supports both video and audio for a truly immersive computer experience for resolution combinations under 32Gbps total bandwidth.

20cm of flex cable to the MST Hub gives you clearance to avoid other sockets at the back of your PC or laptop. A Micro-USB cable is included to provide power to the MST, and should be attached to a powered USB socket which can deliver 5V/2A power (may not be suitable for some laptops on battery power).

Note: For maximum compatibility, a discreet ATI or Nvidia graphics card is recommended. Intel HD and other intergrated graphics or APU chipsets like those found in tablets or entry-level notebooks are not likely to be powerful enough to operate all three sockets at maximum resolution or refresh rate.

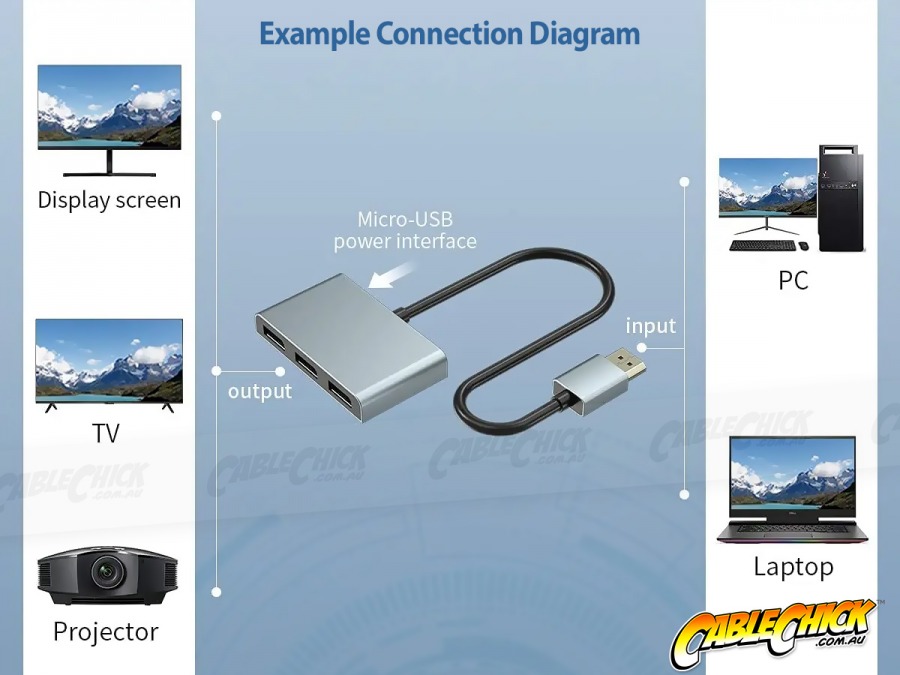

Setup Instructions

  1. Connect the Male DisplayPort end to the DP++ compatible socket on your computer
  2. Using a Micro USB Cable, connect the Mini-DisplayPort MST Hub to a powered USB port (a computer, TV or a wall socket USB charger will do)
  3. Connect from each output on the MST Hub to each of your screens using quality DisplayPort Cables
  4. Now your connection is set up, simply configure the displays via your computer's display properties

A Micro-USB 5V/2A connection is required for additional power (Micro-USB cable not included)

Mac-OS supports only SST (split-mode). Extended desktop MST mode is not available on DisplayPort v1.1 or Mac OS based hardware.

Intended for use with DisplayPort monitors. HDMI compatibility through DP++ Alternate Modes is not guaranteed, and results may vary depending on your hardware.

Product Specifications:

  • 12 Month Cable Chick Warranty
  • 3-Port DisplayPort v1.4 MST Hub (DP Male with 20cm cable to 3x DP Female)
  • Supports mirroring and extended desktop modes
  • Can be used with a Mini-DisplayPort to DisplayPort Adapter for compatibility on Mini-DP sockets
  • Micro-USB socket for additional 5V/1A power (cable not included)
  • 32 Gbps Data transfer rate (HBR3)
  • Full support for HDCP v1.3 and DPCP (Display Port Content Protection)
  • Audio formats up to 24bit / 192KHz supported

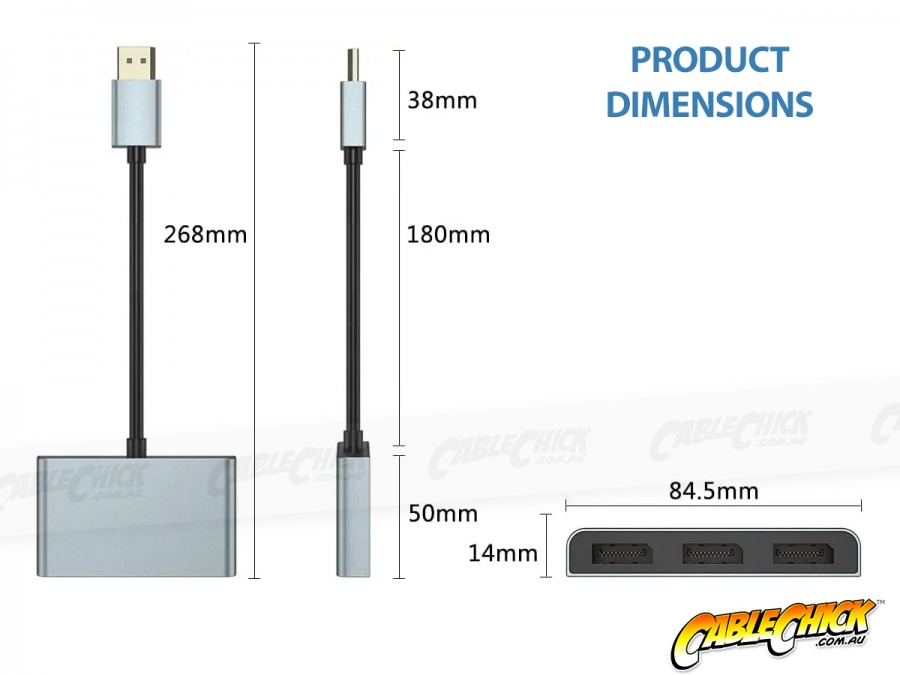

  • Hub dimensions: 85 x 50 x 15 mm (excluding cable)
  • Colour: Silver Alloy with Black cable

*Hardware Note: Your existing video graphics adapter must meet the DisplayPort hardware specifications you intend to use for this splitter to perform all of its functions. Older graphics cards or mobile graphics chipsets not capable of MST will not be compatible with this splitter.

Why shop with Cable Chick
  • Australia's leading retailer of AV cables and tech accessories
  • Flat-rate shipping nation wide
  • Secure online shopping 24/7
  • 14 years experience with 1000's of health, government & education clients
  • ALL products locally stocked for same-day dispatch
  • Industry leading warranties up to 5-years on products
  • A customer base of over 250k+ Australians who trust Cable Chick
  • Proudly to be 100% Australian, employing all local staff

Product Summary & Specifications
Product Code:
DP9911
Connector A:
1x DisplayPort (Male)
Connector B:
3x DisplayPort (Female)
Colour:
Black
Packaging:
Retail Bag
Cable Type:
20cm DisplayPort (Male) to 3x DisplayPort (Female) MST Hub
