AV-P-HD422
60+ In-Stock & Next Business Day!

Avencore 4K HDMI 4x2 True Matrix Switch & Audio Extractor (HDMI 2.0 Supports 4K@60Hz)

Premium UHD 4K/60Hz HDMI 2.0 Switcher & Splitter with Audio Extraction - 4 Inputs to either/both Outputs

Avencore 4K HDMI 4x2 True Matrix Switch & Audio Extractor (HDMI 2.0 Supports 4K@60Hz) (Photo )
Avencore 4K HDMI 4x2 True Matrix Switch & Audio Extractor (HDMI 2.0 Supports 4K@60Hz) (Photo )
Avencore 4K HDMI 4x2 True Matrix Switch & Audio Extractor (HDMI 2.0 Supports 4K@60Hz) (Photo )
Avencore 4K HDMI 4x2 True Matrix Switch & Audio Extractor (HDMI 2.0 Supports 4K@60Hz) (Photo )
Avencore 4K HDMI 4x2 True Matrix Switch & Audio Extractor (HDMI 2.0 Supports 4K@60Hz) (Thumbnail )
Avencore 4K HDMI 4x2 True Matrix Switch & Audio Extractor (HDMI 2.0 Supports 4K@60Hz) (Thumbnail )
Avencore 4K HDMI 4x2 True Matrix Switch & Audio Extractor (HDMI 2.0 Supports 4K@60Hz) (Thumbnail )
Avencore 4K HDMI 4x2 True Matrix Switch & Audio Extractor (HDMI 2.0 Supports 4K@60Hz) (Thumbnail )

Connect any one of up to four input/source devices, to switch or duplicate across up to two displays!

In-Stock, Ships Next Business Day!
POPULAR! 150+ SOLD
RRP: $199.95   Was $159.95
129.95
Bulk Pricing (Inc-GST)
QTY BUY         PRICE   /   ITEM DISCOUNT
2+ Units:
$123.45 -$6.50 ea
10+ Units:
$118.05 -$11.90 ea
20+ Units:
$110.80 -$19.15 ea
Bulk discounts will be calculated automatically.
Ships EXPRESS for $9.95 Aust-Wide!
Over 350,000 happy customers and counting...
Read our Google Reviews
Read our Reviews on ProductReview.com.au
Pay by Secure Credit Card, PayPal or EFT
Accepted Payment Methods
  • Description
  • Product Specs
  • Product Reviews
  • Related Blogs
  • FAQs

The best just got better! Affordable Ultra HD 4K HDMI True Matrix switching is here!

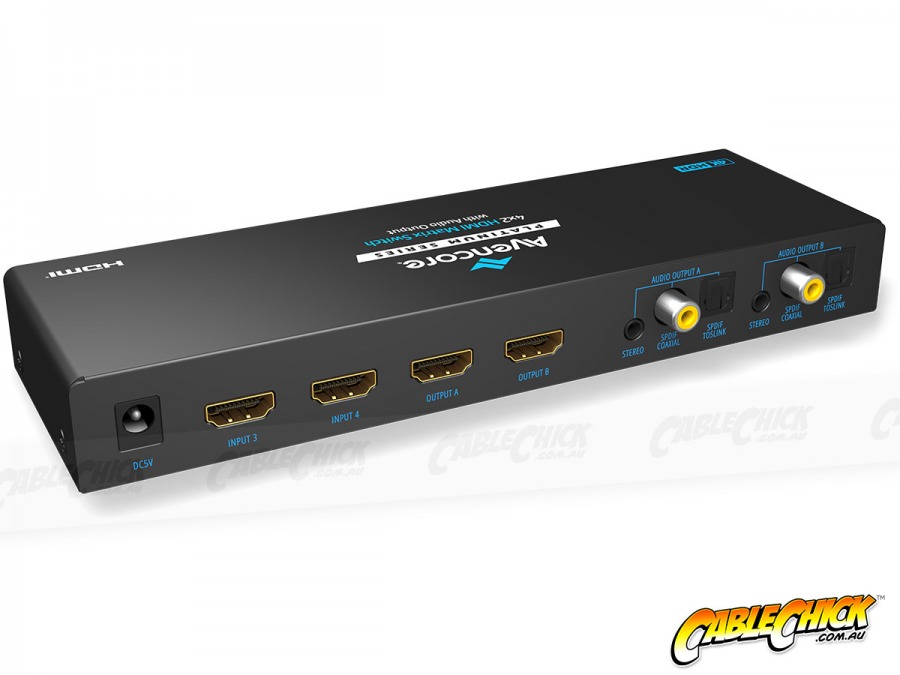

This Platinum Series Ultra HD True Matrix from Avencore enables ANY of the 4 HDMI inputs, to be displayed on EITHER or BOTH of the 2 HDMI outputs, when used in conjunction with 4K compatible HDMI cables. Supporting glorious Ultra HD 4K x 2K resolutions of 3840 x 2160p @ 60Hz, plus 1080p up to 120Hz! Audio output is via HDMI and additionally duplicated in digital TOSLINK optical, digital coaxial and analog 3.5mm stereo formats when available. Note: Dolby Digital Plus is not supported.

Whether you're equipping a home theatre, fitting a shop with the latest in point-of-sale displays or planning to set a club up with video running around-the-clock, the flagship Avencore Platinum series 4x2 UHD 4K HDMI Matrix can take the headache out of wiring and control logistics. With the ability to take up to four HDMI inputs and share them between two displays in any configuration, you can ensure gap-free disc changing or push-button component swapping in a multitude of situations. HDMI switching and splitting has never been so convenient!

Simply plug in all your inputs and outputs, switch them on, and use the included remote control to tell which devices go to which displays - whether it's sharing or splitting, you'll be getting the absolute best in HDMI 2.0 and HDCP 1.4 and 2.2 compliant audio and video to and from every component, from 576p DVD playback through to 4K@60Hz Ultra HD streaming content. The SPDIF and stereo audio outputs are available for each output, and make hooking up a separate receiver or sound system a breeze. Available audio formats depend on the audio in the HDMI stream.

Finish that off with a rugged metal case, gold plated connectors on all ports and a 2 Year Avencore warranty, and you've got a complete, professional package at a bargain price. Suitable for home theatre and light commercial applications.

In the box, you'll find:

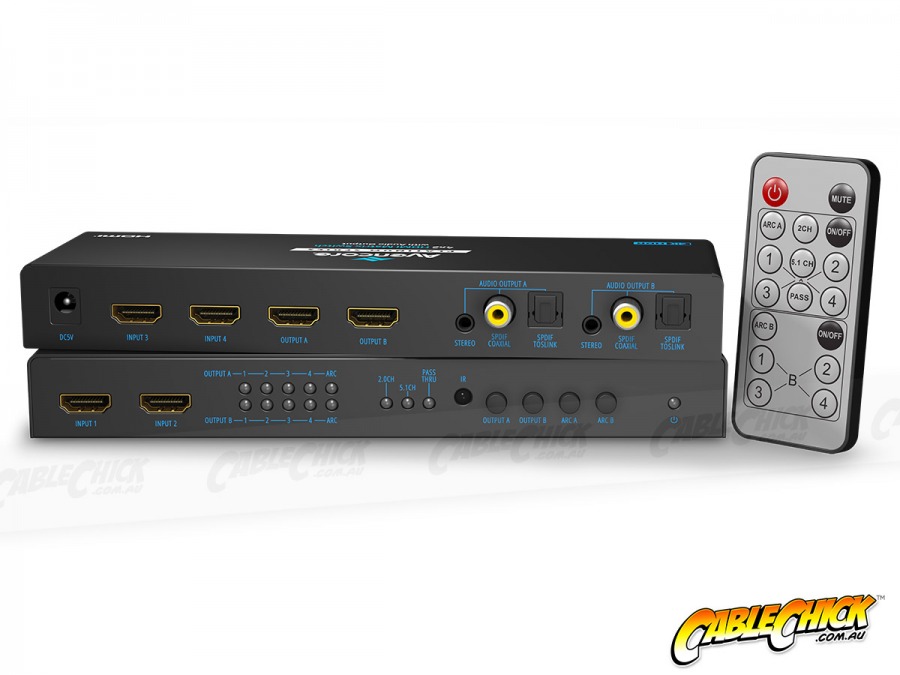

  • Ultra HD 4K 4x2 True Matrix HDMI Switch / Splitter with:
    • 4 x HDMI 2.0 High-Speed Inputs
    • 2 x HDMI 2.0 High-Speed Outputs
    • 2 x Audio Output Sets (1x TOSLINK, 1x Digital Coax & 1x 3.5mm Stereo)
  • Wireless IR Remote Control (battery included)
  • 240v Mains Power Adapter
  • User’s Manual

Featuring:

  • 2 Year Avencore Warranty
  • Advanced remote control for easy switching between inputs and outputs
  • Full HDMI 2.0 compliance (4K@60Hz max)
  • Suports HDR (High Dynamic Range) video (YCbCr 4:2:0 +HDR10)
  • Supports ARC on both HDMI outputs
  • HDCP 1.0 to 2.2 compliant
  • Extracts HDMI audio to TOSLINK, digital coaxial & 3.5mm stereo
  • VGA/SVGA/XGA/SXGA/UXGA, HDTV up to 3840 x 2160 UHD resolution
  • Measures just 211(W) x 66(D) x 26mm(H) and weighs only 348g
  • Heavy-duty metal casing
  • Can be used for DVI-D video-only switching with adapters or HDMI to DVI Cables (not included)
  • Solid black metal casing with non-slip rubberised feet
Why shop with Cable Chick
  • Australia's leading retailer of AV cables and tech accessories
  • Flat-rate shipping nation wide
  • Secure online shopping 24/7
  • 14 years experience with 1000's of health, government & education clients
  • ALL products locally stocked for same-day dispatch
  • Industry leading warranties up to 5-years on products
  • A customer base of over 250k+ Australians who trust Cable Chick
  • Proudly to be 100% Australian, employing all local staff

Product Summary & Specifications
Product Code:
AV-P-HD422
No. Inputs:
4x HDMI Inputs
No. Outputs:
2x HDMI Outputs + 2x D&A Audio
Switch Method:
IR Remote Control
Remote Control:
Included
Packaging:
Retail Box
Switch Type:
UHD 4K/60Hz HDMI 4x2 True Matrix Switch & Splitter

There are no customer reviews yet for this product.
Posted: 7th Sept, 2020
Question: Hi, I am looking for a product that will save me from upgrading my receiver. Essentially I want to connect (potentially multiple inputs) with 4K and output to my 4K projector that does not have ARC, but want the sound to be split to the receiver via the second hdmi output (so I can still get 7.1 audio). Will this product do this?

Thanks Mark?
Answer: "Maybe. It is hard to say for sure. I will try to explain some potential problems:

First, because the matrix can send any input to any output, you will always need to manually select both input/output pairs every time you change source devices. This may not be too much of a problem if you rarely change inputs.

Second, you may need to fiddle with your receiver or projector audio settings if you find any audio desynchronisation, as some projectors (even TVs) can introduce some lag if they rely heavily on post-processing. There will be no automatic synchronisation available.

Finally, this Matrix can't output a mix of 4K and 1080p video from the same source. It may see the receiver as a 1080p upper limit and then only request 1080p from the source, leaving only 1080p available for the projector as well. We can't know if this will happen without testing it on your specific hardware.

We are currently working with our supplier to get a new type of splitter which can mix outputs in this way, but they only have 1 input and could easily be months away (we don't have an ETA yet, but they are in production).

I'm sorry I don't have better information for you. How your hardware behaves is a very important factor. If you wanted to try and test beforehand if this matrix was likely to work, you could try some method of feeding the receiver a 4K signal and see if it was happy to ignore the video and use the audio. This could be tricky, if not impossible, without a display to verify the signal."
Posted: 29th August, 2022
Question: Hi, This unit seems to fit all my criteria - I just want to confirm that I can use streaming sticks as the HDMI signal input ( I have both Amazon Firestick and Google Chromecast) and extract audio to feed my powered Edifier speakers. Less importantly, in the event I want to use my JBL soundbar in tandem with the Edifiers, does audio feed to HDMI and Toslink (or Toslink and coaxial) at the same time?
Answer: "Yes, any HDMI source can work with the audio splitting function, including streaming sticks and android TV devices. The audio is duplicated, so the HDMI stream remains unchanged with the audio intact whether you are using the audio outputs or not."
