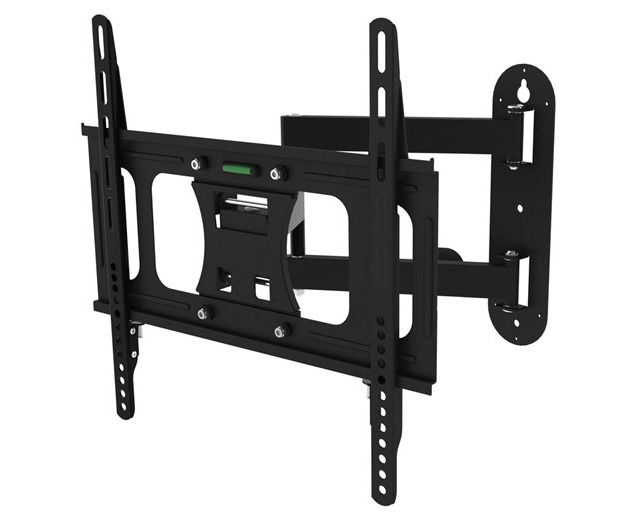

Premium Universal TV Wall Mount Bracket with Extendable Dual Pivot Tilt Arms & Tilt (30kg)

Premium Universal TV Wall Mount Bracket with Extendable Dual Pivot Tilt Arms & Tilt (30kg) (Photo )

A great option for small rooms and awkward corners. Dual-pivot arms with vertical tilt adjustment.

Ships by 2PM Today!
RRP: $149.95   Was $129.95
Bulk Pricing (Inc-GST)
2+ Units:
$102.25 -$7.70 ea
10+ Units:
$95.25 -$14.70 ea
20+ Units:
$86.25 -$23.70 ea
Bulk discounts will be calculated automatically.
VESA400x400 Articulated TV Mount (30kg)
Over 350,000 happy customers and counting...
Read our Google Reviews
Read our Reviews on
Pay by Secure Credit Card, PayPal or EFT
Accepted Payment Methods
  • Description
  • Product Specs
  • Product Reviews
  • Related Blogs
  • FAQs
A great option for small rooms and awkward corners. Dual-pivot arms with vertical tilt adjustment.

Small living spaces aren't always a bad thing. I know first-hand that a neat little apartment can be the best thing for singles and couples who need a good location above all else. Of course, me being me, I can't do without my creature comforts; and it's the clever gadgets like this Medium fully articulated TV wall mounting bracket designed for most LCD & Plasma TVs from 23" to 55" in size (depending on their weight, with a maximum of 30Kg supported). The solid construction and easiely positionable arms of this dual-pivot TV wall bracket makes for easy adjustments and positioning of your TV viewing angle.

The reason this bracket is so helpful is the dual-pivot arm that allows you to extend the television out from the wall cal also rotate/swivel it around left and right (up to 90 degrees or until your screen edge touches the wall). This means that from one out-of-the-way placement, you can get easy viewing from the kitchen and the couch - or any two locations that are only an angle adjustment away from line-of-sight. Works equally well in campervans and caravans, too: you can stow it flat for watching inside or angle it out and down for watching from outside!

Great for home, retail, office, warehouse, and all other applications. Universal fit for SONY, LG, Panasonic, Samsung and more!

When fully retracted, your television is held 45mm from the wall, and when fully extended and parallel, the bracket will reach a massive 500mm off the wall. Coupled with the -10°/+5° degrees of vertical tilt, there isn't an angle you can't see clearly from. It's constructed from sturdy 2mm thick cold-rolled steel with a black powder coat, so you know it's built to last. It also has the same set of features as most of my other brackets, and you can check them out below!

  • Bracket Type: Dual Pivot Extending TV Wall Mount
  • Weight Rating: Up to 30kg
  • Screen Size: 23" to 55"
  • Portrait/Landscape: Landscape only
  • Min Bolt Hole Spacing: 50 x 50 mm (WxH)
  • Max Bolt Hole Spacing: 400 x 400 mm (WxH)
  • VESA Mounting Support: 50 x 50 to 400 x 400 (WxH)
  • Dimensions: 440 x 410 x 70 mm (WxHxD)
  • Wall Plate Dimensions: 440 x 220 mm (WxH)
  • Stud Spacing: Single Stud Mount
  • Tilt: 10° Down & 5° Up from centre
  • Rotation: 90° Left/Right from centre
  • Extension: 45mm to 500mm from wall
  • Rear Clearance: 45mm minimum
  • Surface Types: Timber / Stud / Masonry
  • Accessories: Parts bag, Spirit Level & User Guide
  • Colour: Black
  • Additional Specifications: Integrated Spirit Level

Need help choosing a wall mount to suit your TV? Check our handy Guide!

Extra Info:

  • 5 Year Cable Chick Warranty
  • Single-Stud Mount Dual-Pivot Articulated TV Wall Bracket
  • Recommended for screens 23" to 55"
  • Installation bolts included for mouting to timber studs
  • Colour: Black (powder coated)

Please note: As with all wall and ceiling brackets, a timber stud or beam is essential for proper, safe mounting. Due to the size of this item, Express Delivery may not be available.

Why shop with Cable Chick
  • Australia's leading retailer of AV cables and tech accessories
  • Flat-rate shipping nation wide
  • Secure online shopping 24/7
  • 14 years experience with 1000's of health, government & education clients
  • ALL products locally stocked for same-day dispatch
  • Industry leading warranties up to 5-years on products
  • A customer base of over 250k+ Australians who trust Cable Chick
  • Proudly to be 100% Australian, employing all local staff

Product Summary & Specifications
Product Code:
Mount Type:
Sml Dual-Pivot Mount

(5th Nov, 2010)
Product Review by Harris,
Start Quote Thank you for your email and for the opportunity to send some feedback, especially given that feedback is well deserved in this case. I only purchase products from the Internet only when necessary, due to the additional set of complications transactions over the Internet bring. However, I must say that without any reservation and by virtue of this personal experience, I am most impressed with your company. My case with this purchase is actually unique. I've had a need to purchase a monitor stand with great urgency for the Personal Assistant to the Head of the Middle School at my school. The school wasn't able to get the right one, let alone get it quickly enough. So, I went to numerous major computer stores/shops, as well as carry out an extensive search on-line. I even rang 2 interstate stores from their on-line websites to ask them for availability of the one I needed in silver (not black) and delivery times. Not only did they not have any at all in either black or silver, but I'd had to wait until the end of October (1.5 months) to get one! Now, exactly the same monitor stand I bought from you would have actually cost me substantially more from a bricks-and-mortar computer shop. So, not only have I saved -- in this case -- $50, but have saved an additional 33% off from your own prices! This is something that has to be experienced to be believed. Worried about the delivery time, I in fact rang your office to ask how quickly it would arrive, based on the direct cash deposit I made. I was advised 3-4 days for the transaction to be finalised and 2-3 days delivery; a total of up to 7 days. It actually arrived in 3 days, 2 of which were actually the weekend! In Summary: *On-line Website: Exceptionally easy to navigate. More so, what's on there is factual with no play on words. *Off-line Contact: A reliable person answered my call, who was more than accommodating and clearly explained what I needed. *Actual Product: I needed a specific stand of specific colour. From the web-based companies, yours was the only one who had it in stock and of the required colour. *Price: $50 cheaper from a bricks-and-mortar store and 33% less off from your own prices! *Transaction: A wide range of payment methods. Exceptional. *Delivery: I actually received it in less than half the estimated time! Perfectly packaged. *Delivery Cost: Far less than from any of the other websites I investigated. The monitor stand was mounted on time. The Personal Assistant's words: “Hi Harris, I am LOVING this stand. I've so much free space now.”- Julie-Anne. Again, if I'd not experienced it, I'd not have believed it. I'd certainly highly recommend your company to anyone and with unreserved confidence that any prospective customer will have the same unbelievable experience that I had in all of the above aspects. Many thanks again for actually making the purchase experience effortless, stress-free, and for the exceptional product together with its exceptional price. Kind Regards, Harris. Start Quote
Choosing the Best TV Wall Mount
Choosing the Best TV Wall Mount
Written on 30th April, 2014 by Cable Chick
With this handy guide, you'll be able to find the perfect wall mounting bracket for your TV, ensuring full compatibility while keeping all the features you need.   [Read More]
Posted: 12th Feb, 2016
Question: Hi Guys,
Can this bracket be used on brick walls. The tv is a Panasonic TX-32LWD500A weight 24kg?
Answer: "Yes it certainly can however for masonry and brick wall installations, we usually recommend using Dyna Bolts which can be purchased from most hardware stores. The screws and accessories included with most TV brackets are only designed for general plasterboard / timber installations."
