Converts FROM Composite Video (CVBS) or S-Video source(s) TO a VGA display. Features selectable resolution VGA upscaling (see table below), and selectable video input. An easy solution for retro gaming consoles, VHS/Betamax/Laserdisc players and any other old AV gear that needs video converted to VGA.
Convert from old analog standards to VGA with selectable upscaling!

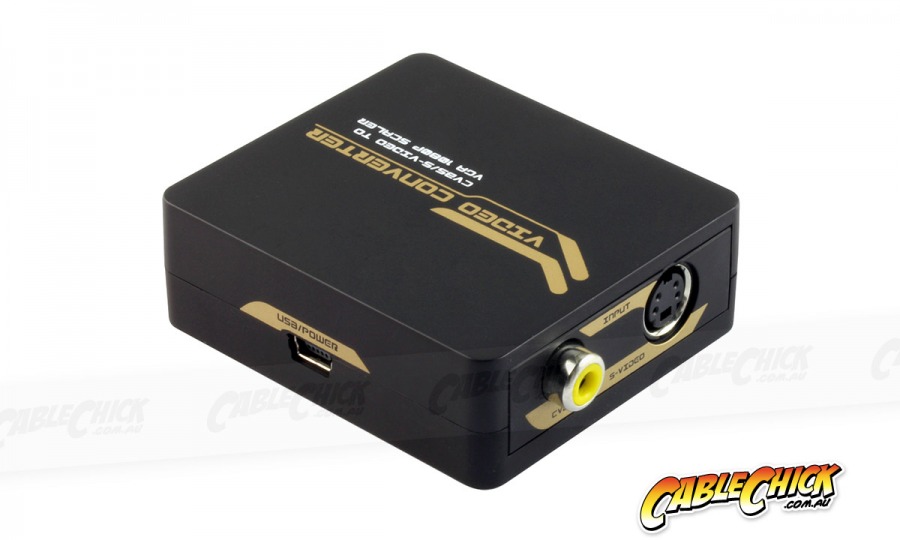

This video only converter can accept either composite video (CVBS via 1x RCA) or S-Video and turn it into crisp VGA at a variety of output resolutions quickly and easily. It's a set-and-forget solution with a switch alongside for changing between input types, making it possible to have both CVBS and S-Video devices connected and swap between them on the fly.

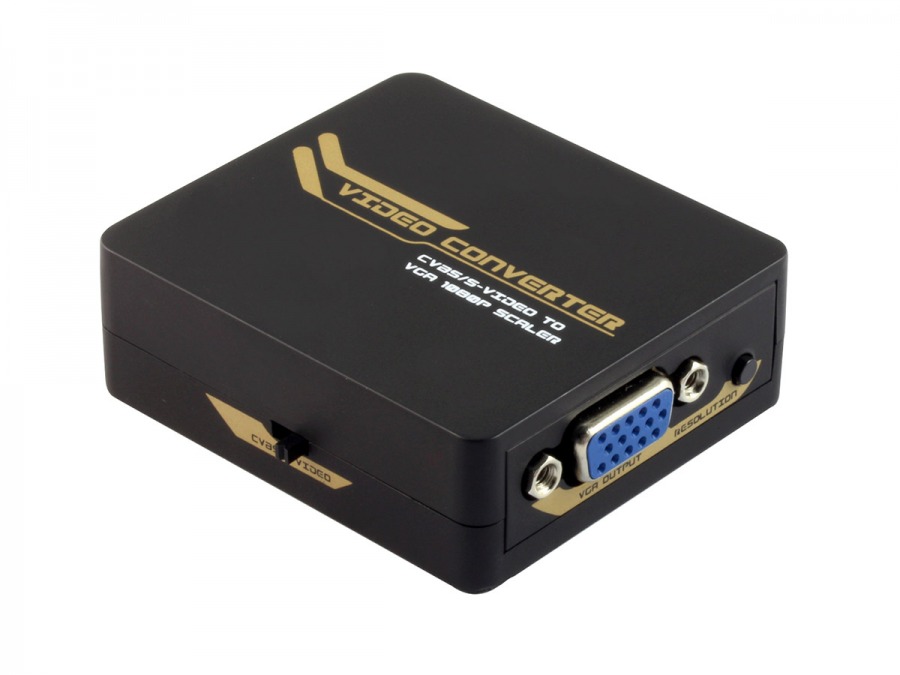

It's a compact unit with PAL and NTSC input support and is powered via USB with just 5W max draw. The resolution button next to the VGA output can choose from among the following:
| 800×600/60HZ |
| 800X600/75HZ |
| 1024X768/60HZ |
| 1024X768/75HZ |
| 1280X1024/60HZ |
| 1280X1024/75HZ |
| 1600X1200/60HZ |
| 1366X768 /60HZ |
| 1600X900 /60HZ |
| 1920X1080/60HZ |
| 1440X900 /60HZ |
| 1680X1050/60HZ |
| 1920X1200/60HZ |
Image quality results are limited by the fidelity of your source material and the lowly capabilities of Composite and S-Video signals, but the upscaling VGA output works to get the best clarity from your source device without spending big money on broadcast quality gear.
Converter Inputs:
Converter Outputs:
Important specifications:
