Our large Floor Mount Racks impress with a swath of included features hard to find elsewhere!
Our range of 19" Floor Mount Racks provide effortless installation for both the cabinet and your expensive equipment. Accessing, organising and maintaining that equipment is made simple with our wide range of accessories. Shipped to your door using ONLY the best and most careful courier services, you can bet that our range of Floor Mount Cabinets will be ready to go when you are.
Designed for the universal 19" standard, our range of fully assembled and flexible network cabinets are perfect for the professional and professional-at-heart alike. Applications include Network and Communications Equipment, Patch Panels, Security and DVR equipment, Routers, Pro Audio Gear, UPS's and PABX or Telecom Systems and pretty much any equipment that's designed for rack mounting or can fit in a 19" rack!
They feature a sturdy frame manufactured from SPCC high quality cold rolled steel to precise dimensions with thick 2.0mm rails, 1.2mm doors and 1.0mm panels and frame making it extremely rigid under load. This also makes them light without compromising on strength. Our floor mount racks are designed to accommodate an impressive 800kg of your valuable equipment when installed by a competent technician and in accordance with the manufacturer's specifications.
Need some accessories to go with your rack? Check out our complete range here!
Construction
- Welded frame made from high quality, cold rolled steel
- Rails: 2.0mm Thick
- Frame and side panels: 1.0mm Thick
- Door: 1.2mm Thick

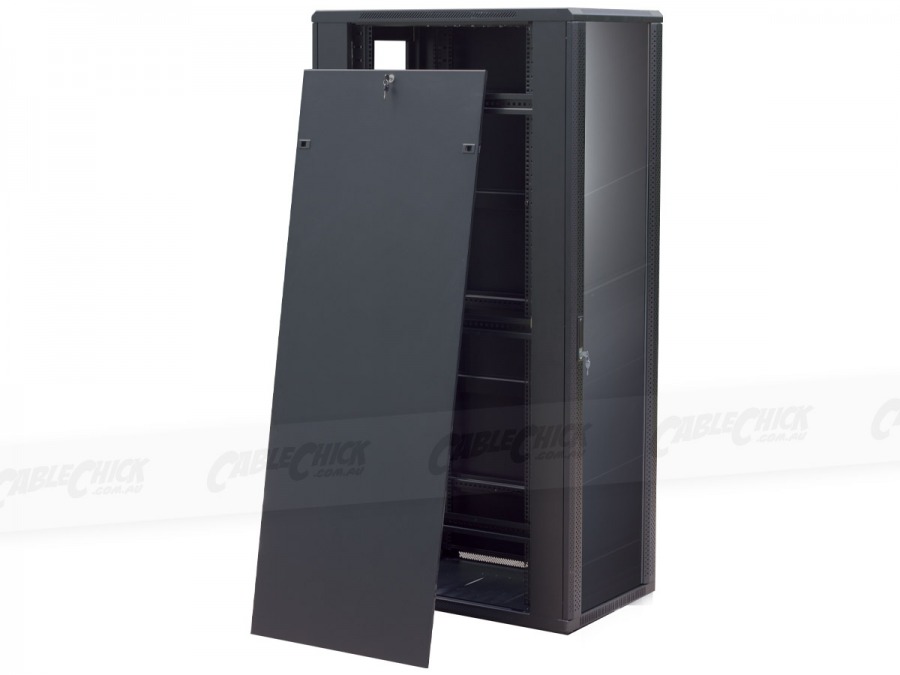

- Removable Side Panels
- Four heavy duty castors (2 with brakes) fitted for positioning your rack on site
- Four adjustable levelling feet included
- Includes two fixed shelves
- More shelving options available in our range of accessories
- Maximum Load: 800kg
- Colour: Black

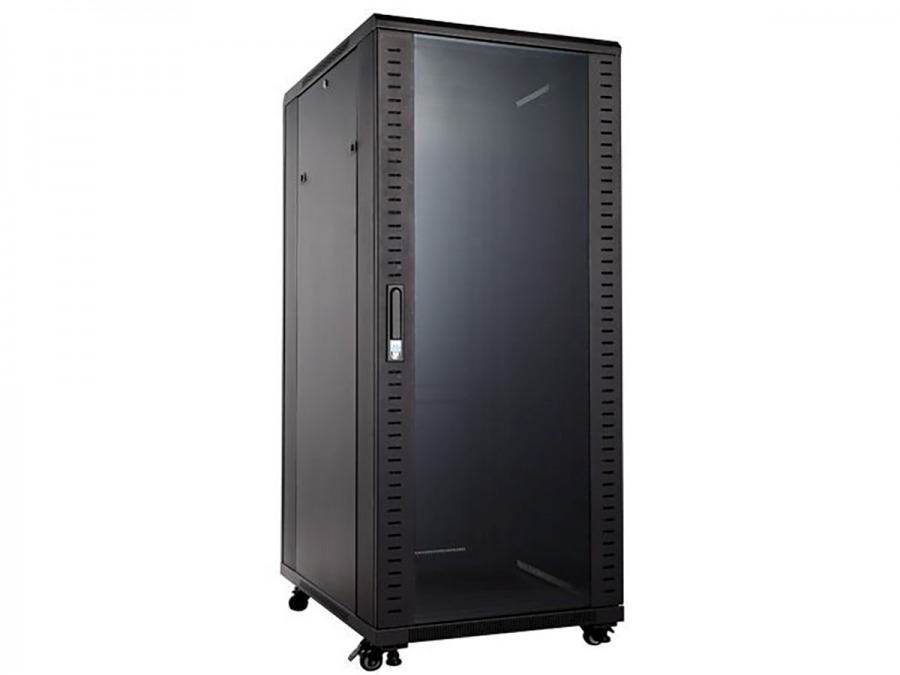

Glass Door
- Fully Tempered 5mm Glass
- Clear View of Inside of the Cabinet
- Earth Lead Connected to Door
- Quick Release Hinges

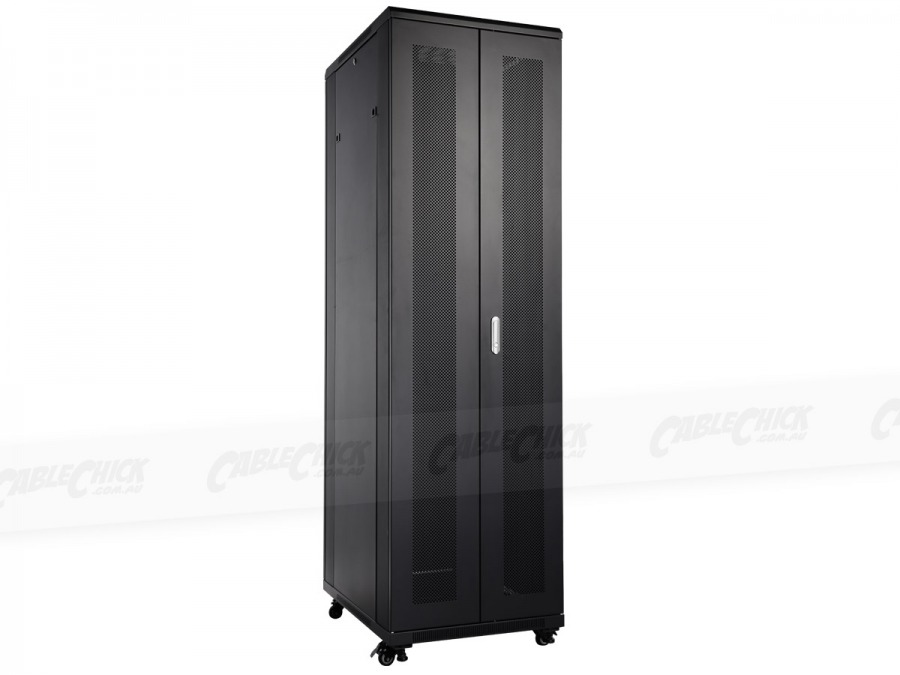

Rear Bi-Fold Perforated Doors
- Perforated for increased airflow
- Saves space when opening
- Earth Lead Connected to Doors
- Quick release hinges
Rail
- Max Load is a whopping 800kg!
- RU marking printed on to the front and rear rails for easy component placement
- Easy to adjust rails
- Numerous accessories available for rail mounting
- 40x Cage Nuts Included with every Cabinet
Cable Access
- Generous cable access on top (front and rear)
- Bottom cable access via 5 removable cable entry plates
Air Flow
- Double fan module Included
- Mounted on the inside top of the rack
PDU (Power Supply)
- 6-Way 10A, 2400W Horizontally Rail Mounted Power Supply Included
- Australian 3-Pin plugs and sockets
- Additional PDU Sizes and Styles available in our range of accessories
Cable Management
- 120mm between front door and rail for cable management
- Horizontal cable management accessories available
- Vertical cable management accessories available
Pallet Mounting
- All floor mount racks are secured to and shipped on a pallet for safe and easy transportation
- Attached to pallet via brackets which are quick and easy to remove once on site
Specifications and Features:
- 12 Month Cable Chick Warranty
- 18RU 19" Floor Mount Data Rack
- Built to ANSI-310-D, IEC 297-2, DIN 41491/41494 Standard
- IP20 Rated
- Weight: 50kg
- Maximum Installed Weight Rating: 800kg not including the cabinet
- Width: 600mm
- Depth: 600mm
- Height: 988mm
- 6-Way 10A PDU: Included
- Fans: Two Fan Module Included
- Cage Nuts: 40x Included
- Fixed Shelf: 2x Included
- Colour: Black
Due to logistics, restocking costs and shipping fees involved with these products we regret that we cannot accept any returns for change-of-mind purchases under our 30 day returns policy. This does not in anyway affect the warranty that comes with this item (listed above). Due to the size of this item, Express Delivery may not be available and the item cannot be shipped to Parcel Locker, PO Box or Locked Bag addresses.
