Small Price, Medium Rack, Big Features!
Our range of 19" Swing Frame Racks provide all the unique features of our regular Wall Mount Racks with the added swing feature. When additional access is required, the rack can be unlocked and swung away from the wall allowing full access to the rear of your equipment for installation or servicing without the need to uninstall items first.
Accessing, organising and maintaining that equipment is made simple with our wide range of accessories. Our Swing Frame Wall Mount Racks are as at home installed underneath stairs, in tight corners or just on the floor next to your desk. They're ideal when you need to secure a few items such as modems, patch panels, NUC's or servers and when installed correctly at eye level can make short work of any maintenance needed.
Designed for the universal 19" standard, our range of fully assembled and flexible network cabinets are perfect for the professional and professional-at-heart alike. Applications include Network and Communications Equipment, Patch Panels, Security and DVR equipment, Routers, Pro Audio Gear, UPS's and PABX or Telecom Systems and pretty much any equipment that's designed for rack mounting or can fit in a 19" rack!
It features a sturdy frame manufactured from SPCC high quality cold rolled steel to precise dimensions with thick 1.5mm rails, 1.2mm doors and 1.0mm panels and frame making it extremely rigid under load. Our wall mount racks are designed to accommodate an impressive 60kg of your precious equipment when installed on suitable walls by a competent tradesperson and in accordance with the manufacturer's specifications.
Need some accessories to go with your rack? Check out our complete range here!
Construction
- Welded frame made from high quality, cold rolled steel
- Rails: 1.5mm Thick
- Frame and side panels: 1.0mm Thick
- Door: 1.2mm Thick
- Removable Side Panels
- Includes one fixed shelf
- More shelving options available in our range of accessories
- Swings from wall from hinge on Left Side
- Maximum Load: 60kg
- Colour: Black

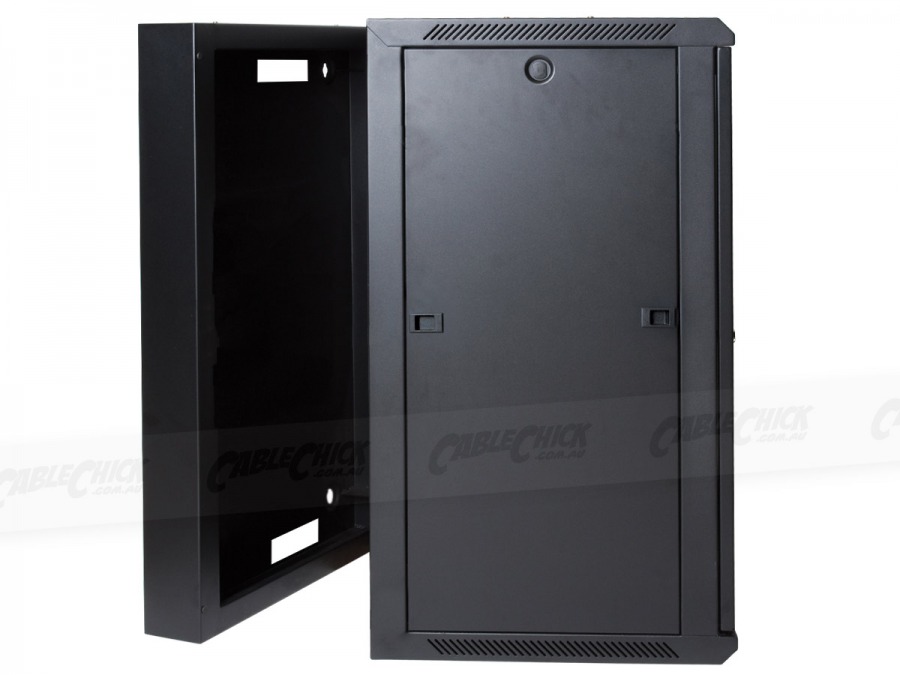

Swing Frame Design
- Easy to access installed equipment
- Locator pins align the door to the frame when closing
- Keyed lock prevents unauthorised persons opening the swing frame

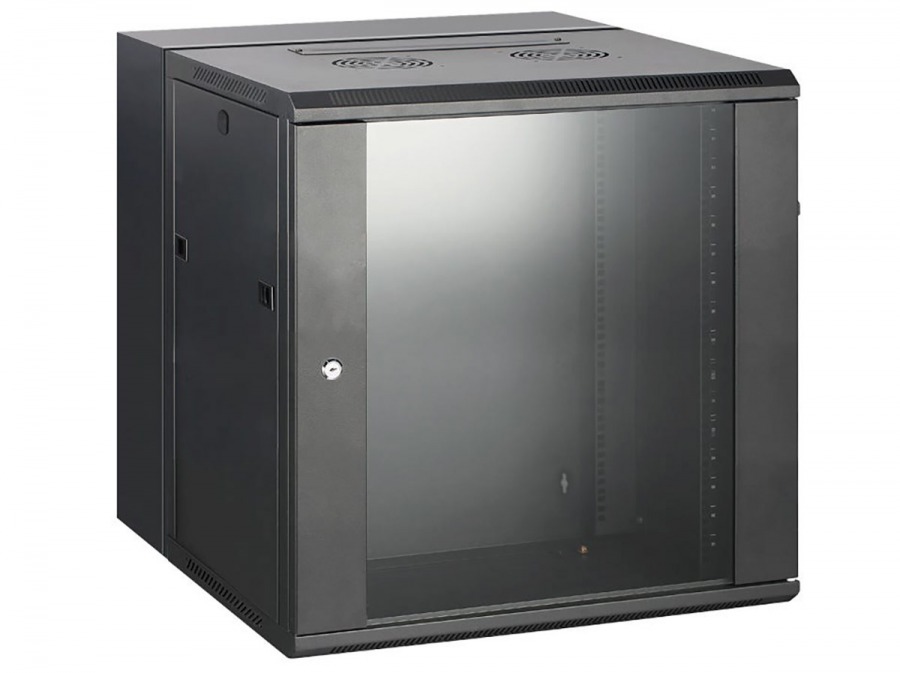

Glass Door
- Fully Tempered 4mm Glass
- Clear View of Inside of the Cabinet
- Earth Lead Connected to Door
- Quick Release Hinges
- Door can be changed to left or right opening with quick release hinges
Mounting Bracket
- Features a wall mount bracket for ease of installation
- Before mounting to a wall please ensure the structure of the wall capable of handling the expected load
Rail
- Max Load is 60kg!
- RU marking printed on to the front and rear rails for easy component placement
- Easy to adjust rails
- Numerous accessories available for rail mounting
- 40x Cage Nuts Included with every Cabinet
Cable Access
- Rear cable access via 2x knock-outs allowing cable to enter rear of rack, secure and out of sight
- Generous cable access on top and bottom via removable cable plates
- 1x cable access on top and 1x cable access on bottom
Air Flow
- Fan cut-outs on top for mounting our simple to install double fan module
- Covered fan cut-outs on top to prevent dust entering if the fans aren't installed
PDU and Cable Management
- 6-Way 10A, 2400W Horizontally Rail Mounted Power Supply Included
- Australian 3-Pin plugs and sockets
- Additional PDU Sizes and Styles available in our range of accessories
- 70mm between front door and rail for cable management
- Horizontal cable management accessories available
Specifications and Features:
- 12 Month Cable Chick Warranty
- 12RU 19" Swing Mount Wall Mount Data Rack
- Weight: 24kg
- Maximum Mounted Weight Rating: 60kg not including the rack
- Width: 600mm
- Depth: 600mm
- Height: 635mm
- 6-Way 10A PDU: Included
- Fans: Not included
- Cage Nuts: 40x Included
- Fixed Shelf: 1x Included
- Colour: Black
Due to logistics, restocking costs and shipping fees involved with these products we regret that we cannot accept any returns for change-of-mind purchases under our 30 day returns policy. This does not in anyway affect the warranty that comes with this item (listed above). Due to the size of this item, Express Delivery may not be available and the item cannot be shipped to Parcel Locker, PO Box or Locked Bag addresses.
