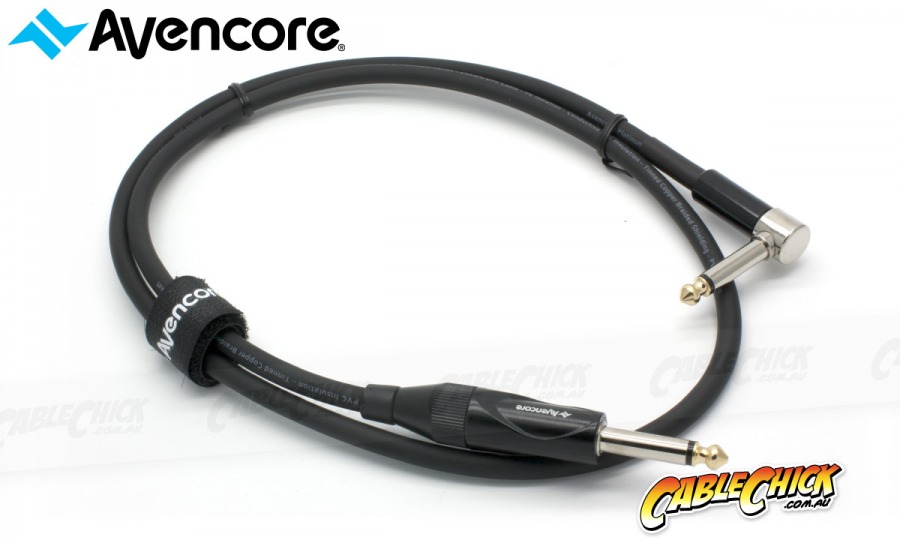

10m Avencore Platinum 1/4" Guitar Cable with Right Angled Connector

Let's have a look at Avencore's Pro Audio 10m Right-Angled Instrument Cable offering and see what we get...

We'll start at the core of the cable. There you'll find a 24 Gauge carrier with 20 strands of 0.12mm Oxygen Free Copper (OFC). Surrounding this is an additional five layers:

1. PE Isolation: A layer of Polyethylene (PE) goes around each copper carrier to isolate it. PE Isolation mitigates the Electromagnetic Interference (EMI) produced by the current going through the carrier from leaking too much signal into nearby cables and equipment. Although not a perfect insulator, PE is better than the cheaper PVC isolation found on a lot of cables and is more than enough to deal with the low voltages used in these cables.


2. Conductive PVC: Next is a layer of Polyvinyl chloride (PVC) modified to be conductive. Rather than isolating the EMI coming from the carrier (which is what the PE Isolation does), Conductive PVC insulates the carrier from outside EMI instead.


3. Cotton Filler: Helps make the cable rounder, helpsprevent static discharge from inside the cable and absorbs some of the impact from being crushed by various things (chairs, trolleys, stage gear, humans of any kind etc.).


4. TCWB Shield: This is the main shield for the cable and also serves double duty as the grounding connection. Tinned Copper Wire Braid (TCWB) shielding is the best shielding a pro audio cable can have. Tinning the copper extends its lifetime and a braided shield has a higher percentage of coverage than a spiral shield while being much more forgiving to being bent than a foil shield.


5. Outer PVC Jacket: Super not interesting, absorbs impacts and helps take the strain off the internal components.

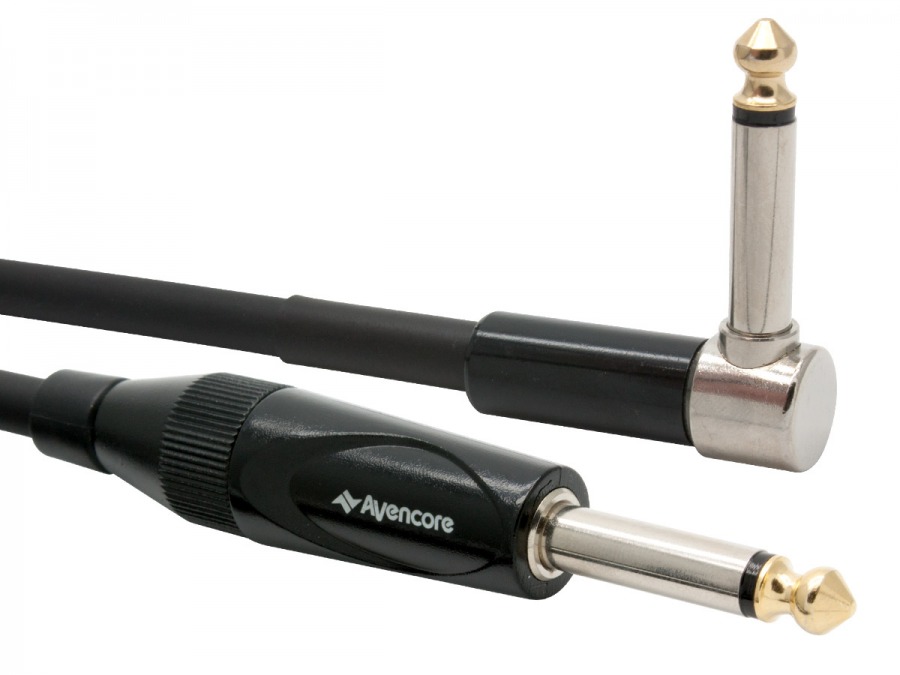

Joined to each end we have some highly durable connectors. All Avencore Pro instrument cables feature high quality, robustly designed connectors for maximum long term reliability and signal quality. Avencore's connectors have superior contact points, higher quality components and tighter tolerances when compared to inferior products and counterfeits. The tips on all Avencore Pro connectors (straight and 90 degrees) are also gold plated for long term, high quality conductivity.

Avencore Platinum Series 10m Instrument Cable Specs:
- Avencore's 5 Year Warranty
- Well made and thought out, reliable, professional level cables
- Genuine high quality 6.5mm connectors with silver barrels and gold plated pins
- 24 AWG OFC Carrier (20 x 0.12mm strands)
- PE Isolation
- Conductive PVC insulation
- Tin Annelled Copper Wire Braided Shield (TAC Braiding)
- Comes with a reusable velcro tie to aid with storage.
- Black cable with black connectors for inconspicuous use

Notice for Installing Cables within Wall & Ceiling Cavities: If you are planing on installing any cable inside a permanent fixture (ie: Wall or Ceiling), Cable Chick strongly recommends that you connect and test the cable prior to installation. By following this simple practice you can ensure compatibility and correct operation of all connected equipment before the cable is permanently installed.
