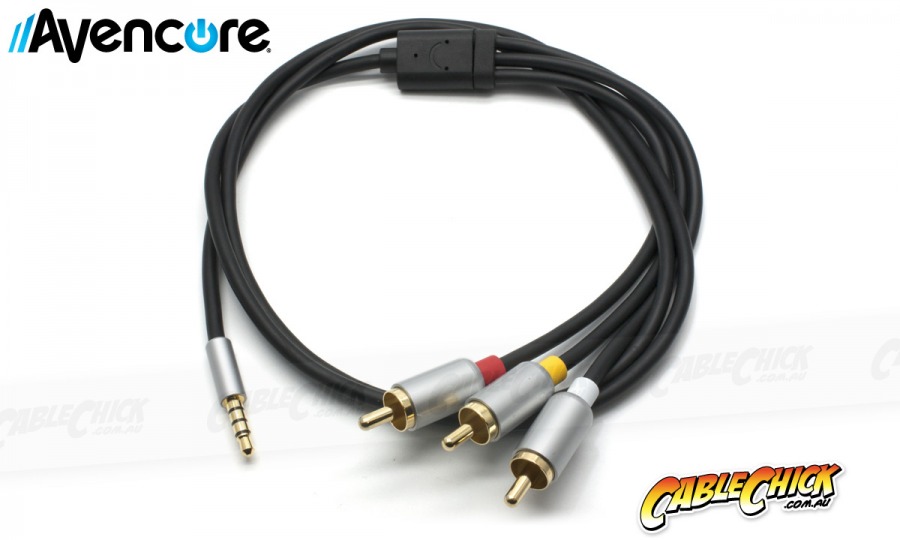

TRRS 4-Pole 3.5mm plug to Yellow Red and White 3RCA Breakout Cable
Avencore Crystal Series 4-Pole TRRS to 3xRCA cables offer a convenient way to connect Composite AV (CVBS + L&R) devices together, where one device uses a common 3.5mm phono socket for combined video and audio output. Wired to the CTIA standard.
Many TVs, in-car entertainment systems and some portable media players like the early iPod offer standard-definiton analog video I/O via a combined video and audio jack which uses the 3.5mm TRRS connector (A 4-pole variant of a standard headphone jack). This cable allows those devices to connect to regular RCA systems for both composite video and stereo audio.

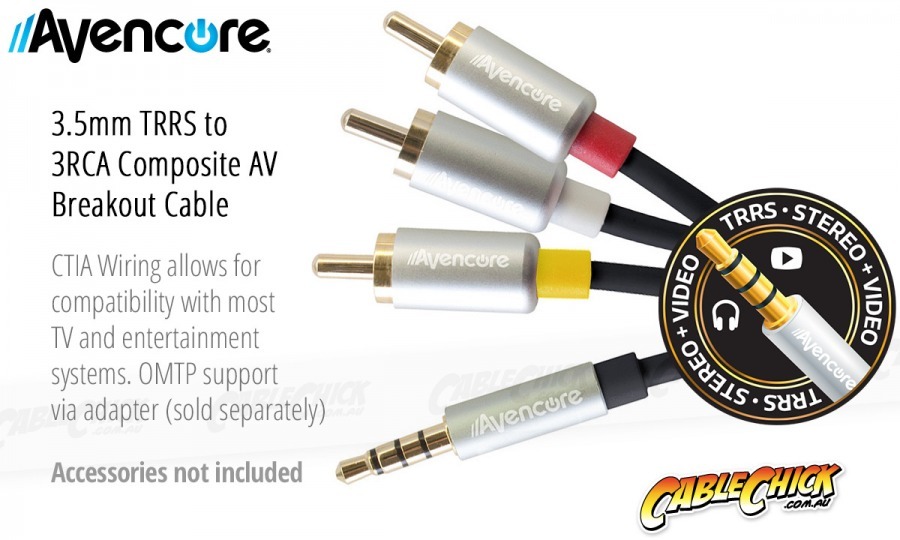

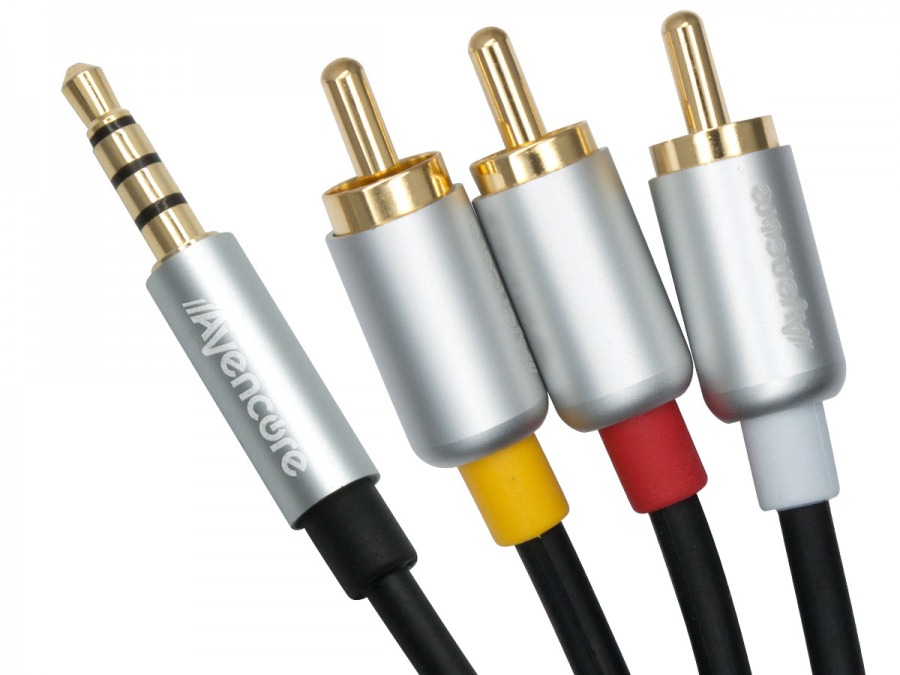

Finished with Avencore Crystal Series' signature aluminium plug barrels, gold-plated eletrical contacts and colour-coded strain relief cuffs ensure a high-quality connection first time, every time. Suitable for use with devices featuring TRRS-based video and audio output using the CTAI wiring standard, and also compatible with OMPT based devices with the addition of an adapter (sold separately)
The Yellow 'Video' RCA plug may also be used for microphone input on supported devices.
Crystal Series 50cm TRRS to 3xRCA Breakout Cable Specifications
- Avencore 3 Year Replacement Warranty
- 50cm Long 3.5mm 4-Pole TRRS to 3xRCA Male to Male Adapter Cable
- 24AWG 99.9% OFC cores
- Supports Composite (CVBS) video and stereo audio
- Wired to the CTIA standard
- Colour: Black Cable with Silver Connectors
Best used for
- TV Breakout Connections
- In-Car DVD & Entertainment Units
- Vehicle Event Cameras / Dash Cameras
- Camcorders and Cameras
- Portable Media Players
Note: Using TRRS for video is not a strict industry standard, and some manufacturers use neither CTIA nor OMTP in their devices. Before purchase, please ensure your device is compatible with the correct standard our products can support. The easist way to check the wiring pinouts is with a multimeter and an original working cable.
Why shop with Cable Chick
- Australia's leading retailer of AV cables and tech accessories
- Flat-rate shipping nation wide
- Secure online shopping 24/7
- 14 years experience with 1000's of health, government & education clients
- ALL products locally stocked for same-day dispatch
- Industry leading warranties up to 5-years on products
- A customer base of over 250k+ Australians who trust Cable Chick
- Proudly to be 100% Australian, employing all local staff
Posted: 14th Oct, 2014
I have RCA video, right, and left output to the AUX on my car stereo, Will this work on the iPhone and iPad?
"Unfortunately the iPhone and iPad only have stereo audio and microphone support (no video) on their 3.5mm output jacks. With our TRRS breakout cable, the best you could feed to your car stereo is sound, but for that purpose we'd recommend a regular 2RCA to 3.5mm cable (http://www.cablechick.com.au/cables/15m-stereo-35mm-stereo-audio-2x-rca-cable-male-to-male.html)"
Posted: 5th Jan, 2015
I have a portable dvd player where i have a playstation connected to via av cable. dvd player has av in. the cable in your picture looks a lot like mine so will the cable you sell work with my dvd player?
"It is hard to say for certain if our cable will work, because many products to not adhere to standards with this style of connector, but in most cables, our cable is configured correctly to suit products like Portable DVD Players and Hand-held Cables with 3.5mm TRRS AV Input/Output.
For more information about TRRS standards, please check out our blog on the subject at http://www.cablechick.com.au/blog/understanding-trrs-and-audio-jacks/"
Posted: 2nd March, 2015
I have a Android tablet with 3.5mm output and want to know,will tis work to connect it to tv,vcr,and dvd player to hear and see everything from the tablet to the others?
"Probably not. Few Android tablets offer video output via their headphone jacks, but you can check your user manual just in case yours does - it will state that feature specifically. Otherwise, you may need to look for another option, such as HDMI output or MHL output."
