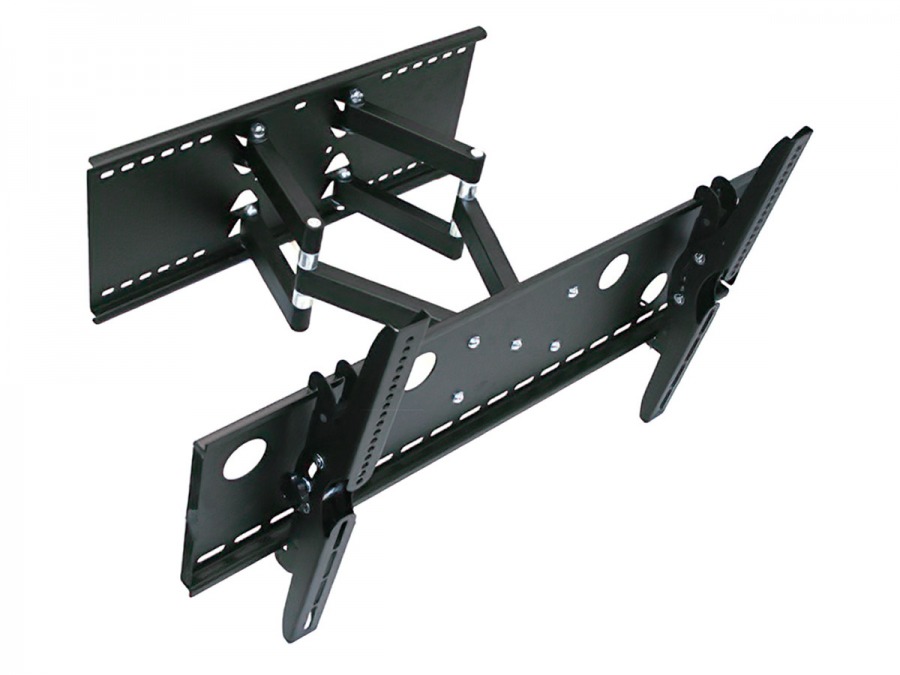

Premium Universal LCD & Plasma TV Wall Mount Bracket with Extendable Dual Pivot Arm - 60kg (Black)

This high quality bracket is absolutly perfect for mounting your 32" to 60" Plasma or LCD  to the wall giving that sleek custom installed look to your Media room. The Bracket is a TILT type bracket which can tilt 15 degrees up or down for the best viewing position possible. It also features a Dual Pivot Arm which allows you to extend your Screen from 125mm to 750mm off the wall and rotate it up to 90 degrees left and right, perfect for viewing your screen at any angle.

Extra Heavy duty design and easy to install!

This brackets ability to tilt upwards 15 degrees mean that you can connect the cables after you have mounted the screen, much easier than mounting an LCD or Plasma screen with the cables already attached. The Bracket Features 2mm steel construction and is rated to 60kg, it is also able to take a lock for extra security for your investment.

Please note: As with all wall or ceiling brackets it is essential that this bracket is fixed to a timber or steel stud when mounting. Due to the size of this item, Express Delivery is not possible, it will be sent via Registered Post.

Will it fit your wall and screen?

It's pretty easy to work out if this bracket will fit your screen:

1. First just measure your screen, the bracket is 760mm wide and the arm height is 530mm so as long as the outside of the screen is wider and taller than that, the bracket will not poke out the sides.

2. Check the mounting holes on the back of the screen and measure how far apart they are. The bracket will fit screens with mounting holes a maximum of 720mm wide and 475mm high (centre to centre of the hole).

3. The back plate, which mounts to the wall, on this model is 630mm wide (effective max hole spacing is 600mm) perfect for homes with stud walls with a maximum stud spacing of 600mm.

4. The Bracket is rated to 60kg, as long as your screen weighes less than this the bracket will hold it without a problem.
